Why use a version control system?

Changing Requirements

This worked in the last release . . .

How can I solve this?

What is version control?

A system that:

About Version Control

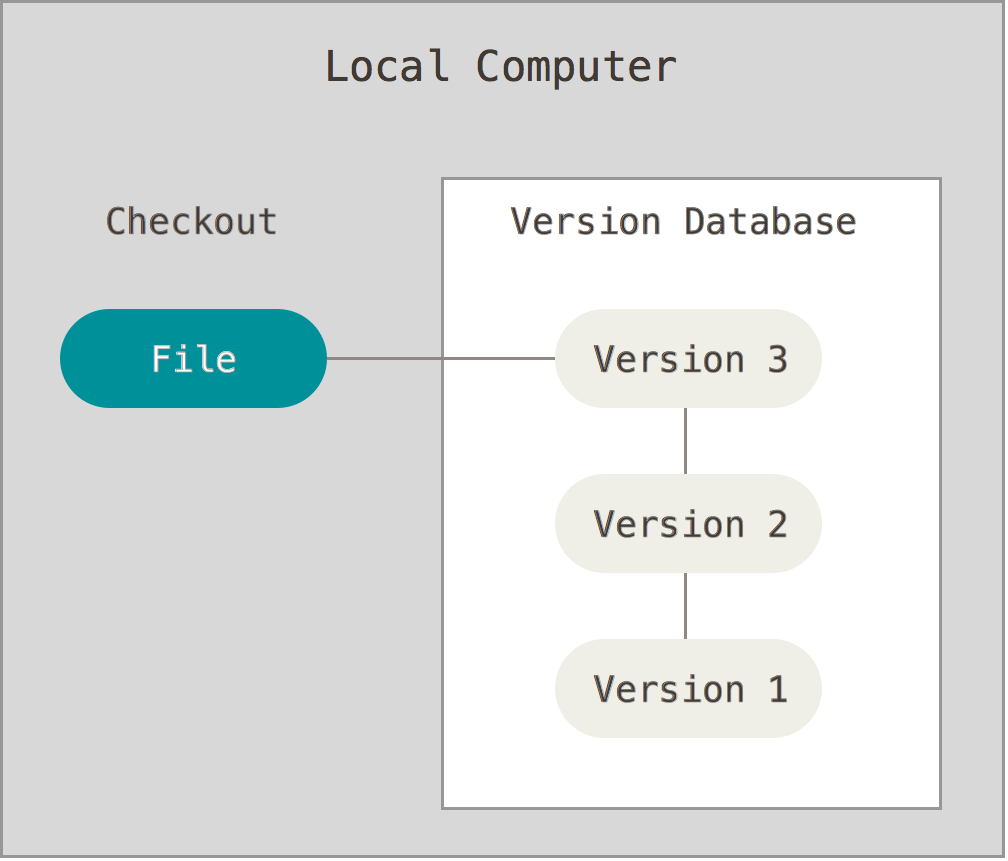

Local Version Control Systems

Local Version Control

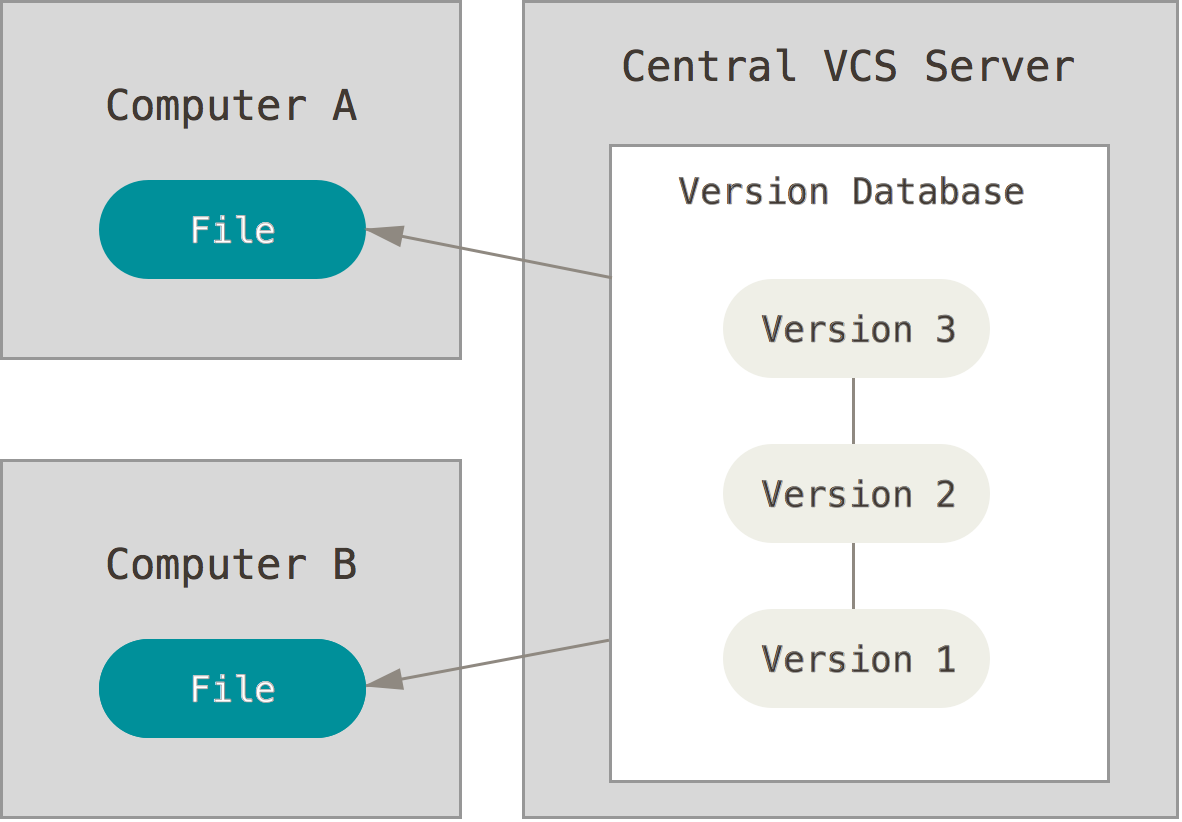

Centralized Version Control Systems

Centralized Version Control

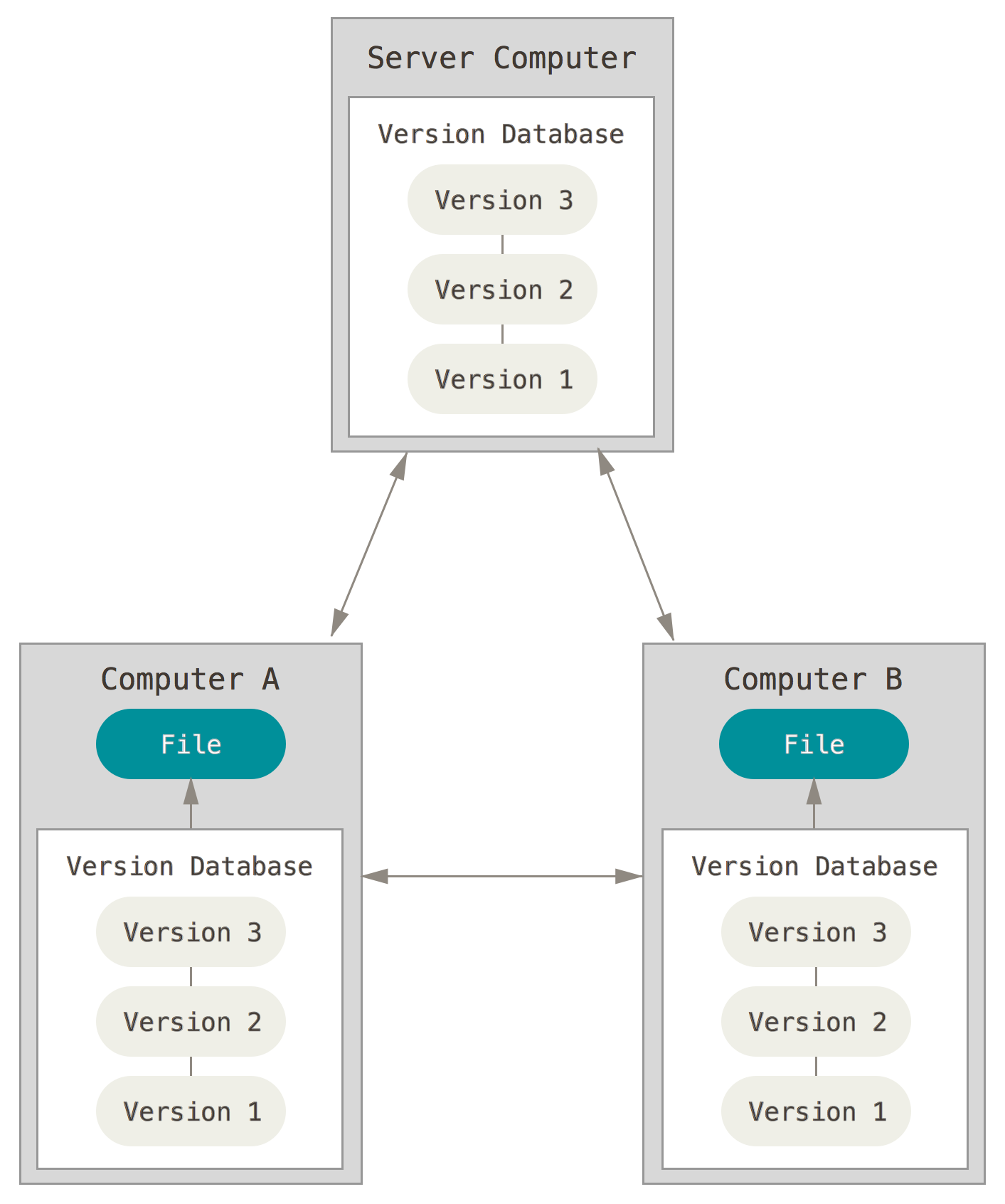

Distributed Version Control Systems

Distributed Version Control

How?

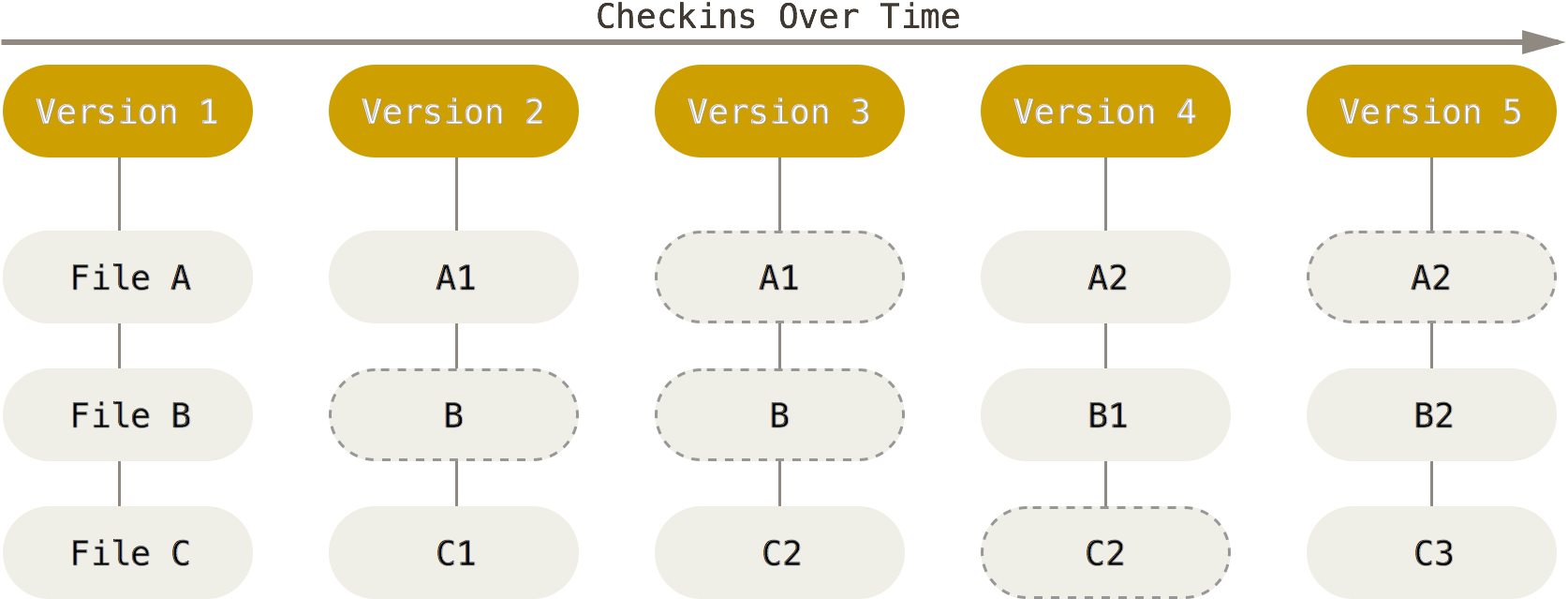

Git takes a stream snapshots by doing a SHA-1 check-sum of everything before it is committed.

Git Basics

Ability to commit work offline

And later syncronize with others

Fast, flexible branching and merging

Experiment with solutions, merge the best & delete the rest.

Full Local History

Fast comparisons over the complete life of the project

Installation

MacOS

Since Mavericks (10.9) just type 'git' in a terminal.

If you want/need a newer version downlaod it directly from git-scm, use Homebrew, or GitHub Desktop.

Windows

Download git for windows or GitHub Desktop.

Linux

Fedora:

							$ sudo yum install git-all


Debian-based:

							$ sudo apt-get install git-all

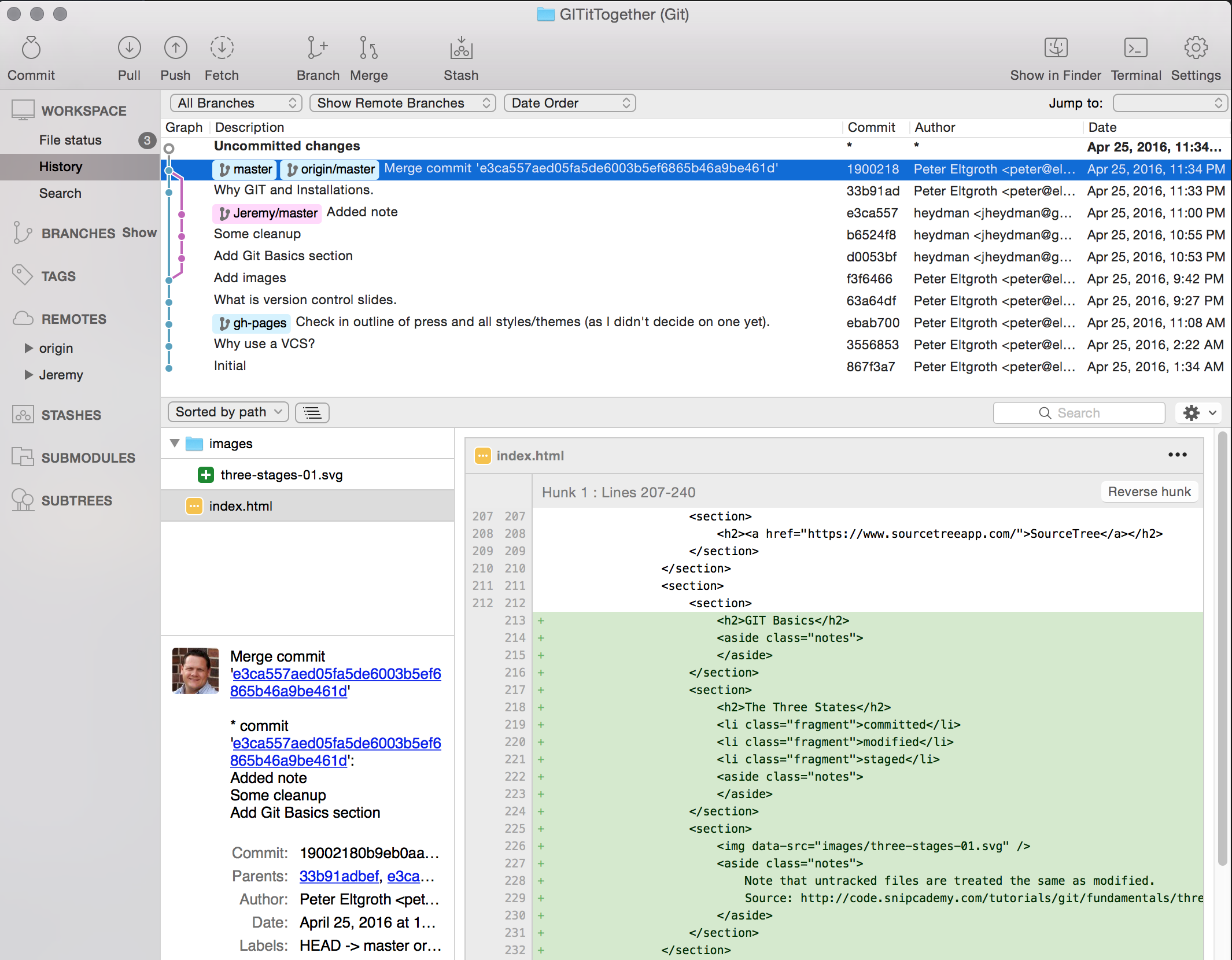

SourceTree

My favorite GUI

Git Basics

The Three States

Snipcademy Three States

Command Line Help

							$ git {optional-command-name} --help


Try Git

Learn Git commands in your browser at try.github.io

Initialize a new Git repository

							$ mkdir myproj


							$ cd myproj


							$ git init


Initializing a repository

init

Checking Status

							$ git status


Short Status

							$ git status -s


status

Add (stage) a file

							$ git add {file}


							$ git add *.java


							$ git add *


add

What differences exist?

Diff of modified changes

							$ git diff


Diff of staged changes

							$ git diff --staged


diff

Reset (unstage) a file

							$ git reset {file-path}


							$ git reset *.java


							$ git reset *


reset

Commit Changes

							$ git commit -m '{message}'


commit

Branching

Create

							$ git branch {branch-name}


Delete

							$ git branch -d {branch-name}


Branches in a Nutshell

branch

Checkout

							$ git checkout {branch-name}


checkout

Merge

							$ git merge {branch-name}


merge

Resolve conflicts

							$ git mergetool


mergetool

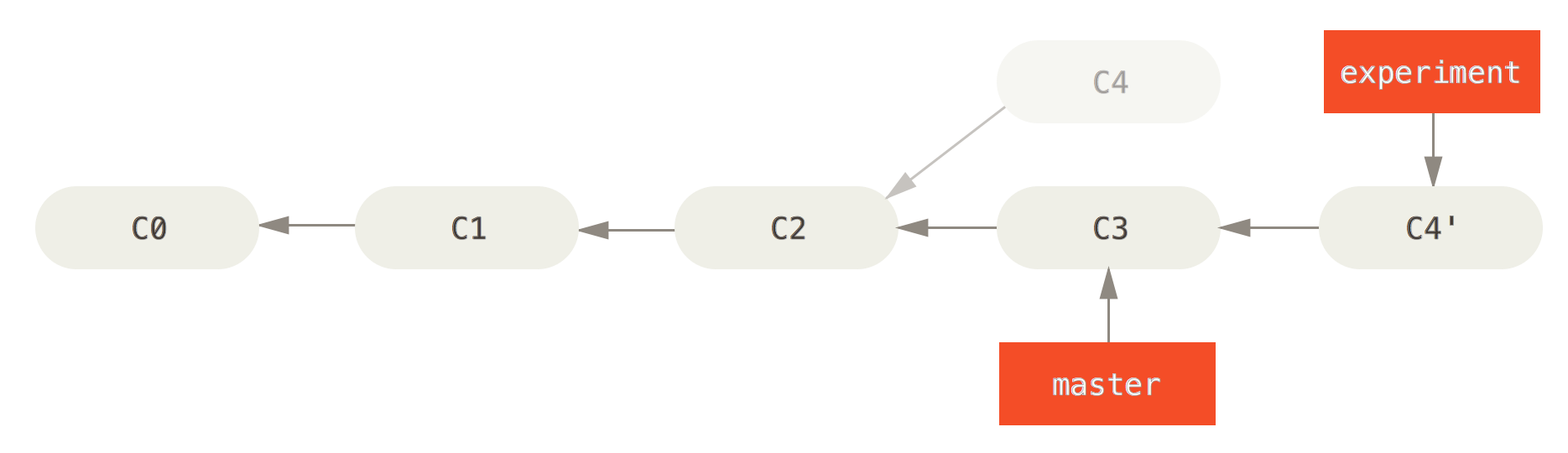

Rebase

Replay a changeset by rewinding to a common ancestor and reapplying each change in turn.

This keeps history more linear and easier to read.

							$ git rebase {branch-name}


Rebasing

rebase

What?

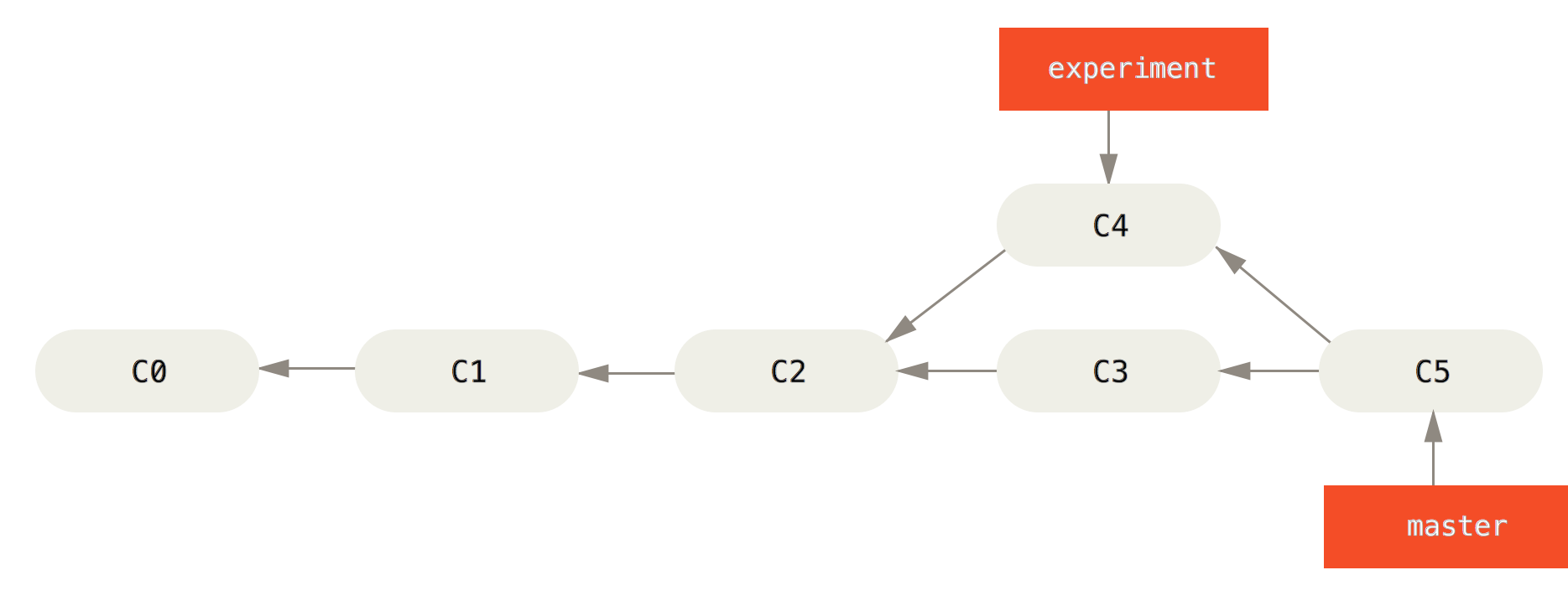

Merge vs. Rebase

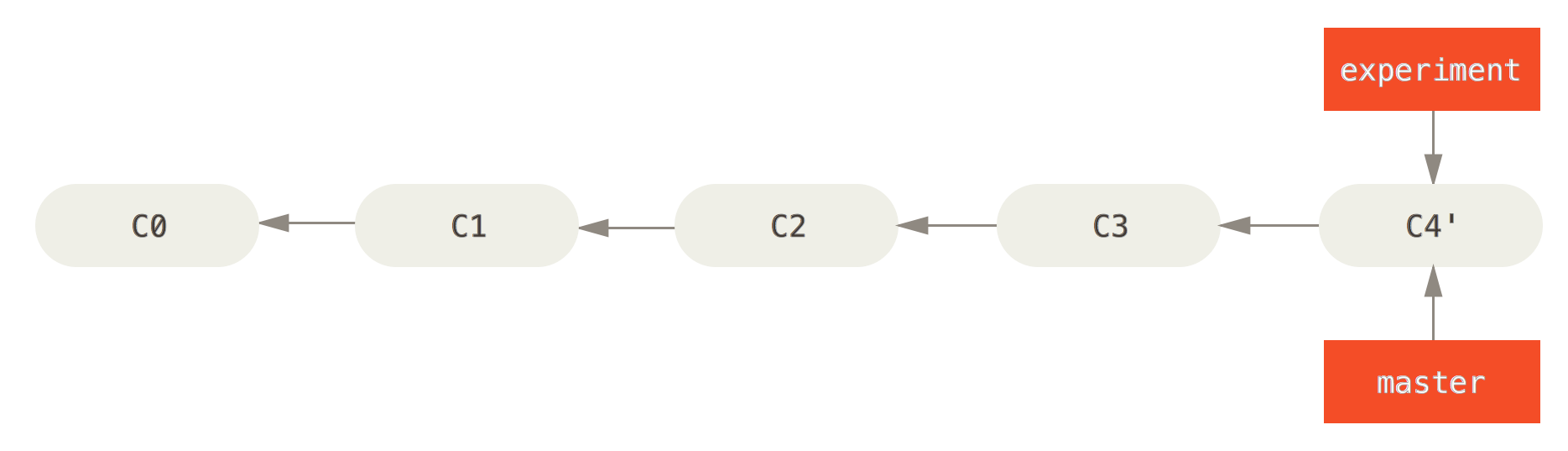

Fast Forward

							$ git checkout master


							$ git merge experiment


Tags

Add

							$ git tag -a 0.1.0 "Alpha release"


List All

							$ git tag


List matching tags

							$ git tag -l {search-string}


List all 1.2 tags

							$ git tag -l "1.2*"


tag

Commit Log

							$ git log


Show diffs for the last n commits

							$ git log -p -{n}


Show abbreviated stats

							$ git log --stat


Show a graph

							$ git log --graph


Viewing Commit History

log

Hosted solutions

GitHub

BitBucket

GitLab

VSTS

Fork

Your copy of a repository in at the hosting provider.

Clone an existing repository

							$ git clone {path to repo}


							$ git clone https://github.com/PeterEltgroth/itconf2016


Clone Existing

clone

Remotes

List

							$ git remote


List with URLs

							$ git remote -v


Inspect

							$ git remote show {optional-remote-name}


Working with remotes

remote

Remotes

Add

							$ git remote add {remote-name} {url}


Rename

							$ git remote rename {old-name} {new-name}


Remove

							$ git remote rm {remote-name}


Working with remotes

remote

Fetch

							$ git fetch {remote-name}


fetch

Pull

Fetch & Merge the remote branch into the current branch

							$ git pull {remote-name} {remote-branch}


pull

Push

Push remote branch into the current branch

							$ git push {remote-name} {branch-name}


push

Rebase Warning!

If your fork (or any other repo) already has your C4 commit and then you rebase locally, it WILL cause problems.

Pull Request

A request that a change you made be pulled back into a branch on another copy of the repository.

As a developer submitting a PR, it is generally your responsibility to catch up and resolve any merge conflicts with the branch your PR is targeting.

Managing Pull Requests

Continuous Integration

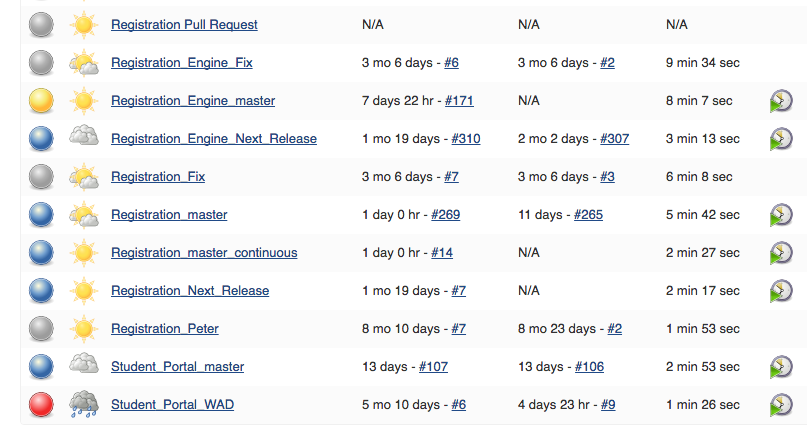

Jenkins

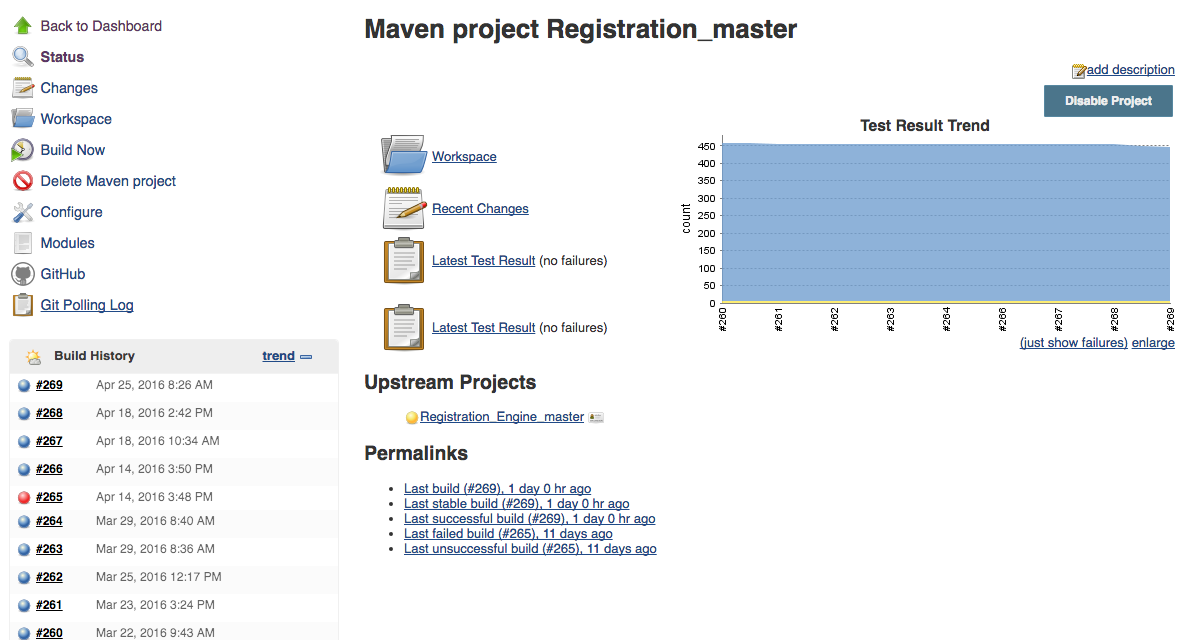

Registration Build

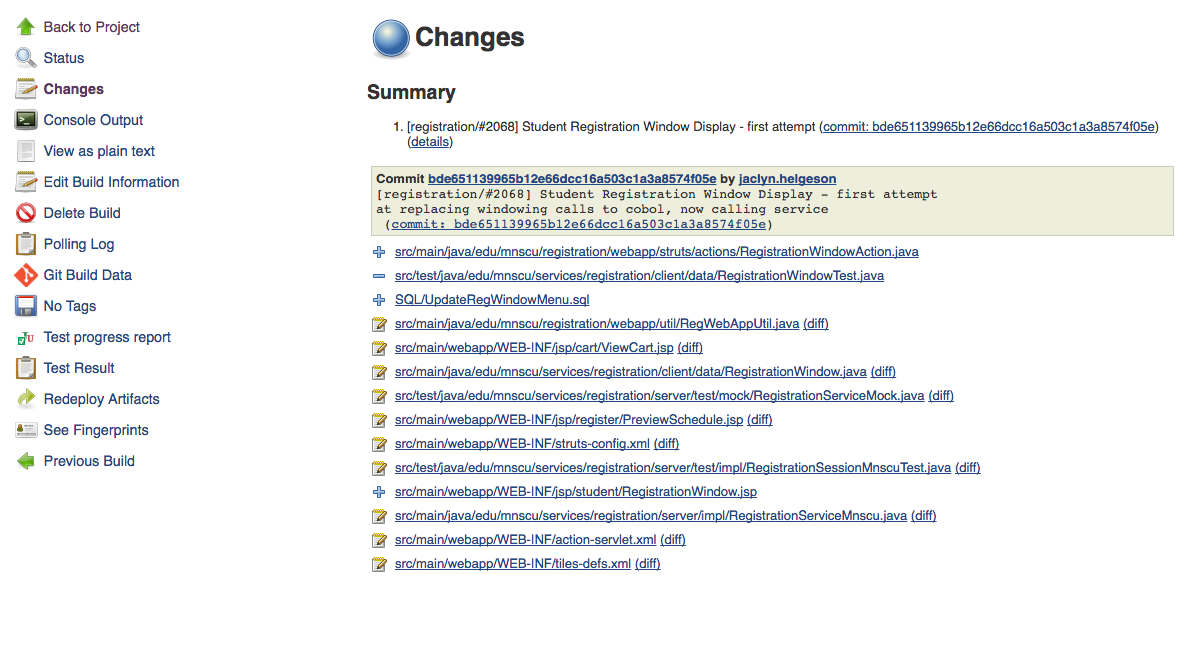

Build Details

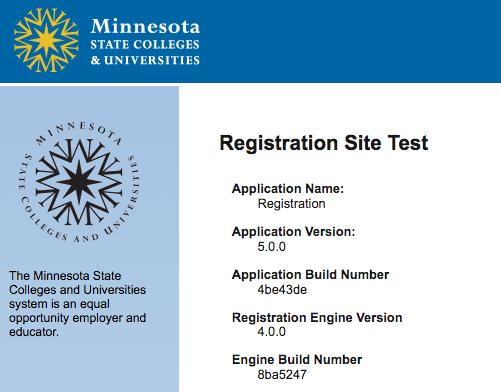

Site Test
